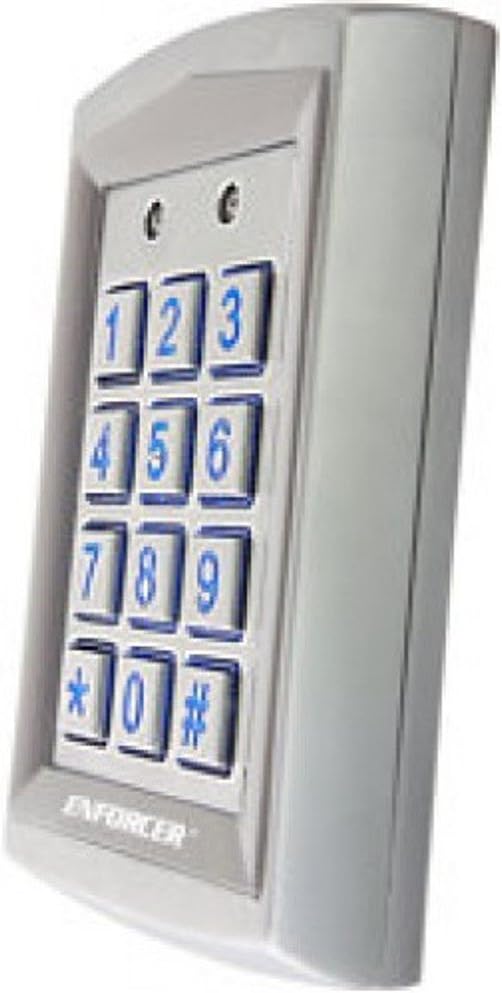

Seco-Larm Enforcer Access Control Keypad, Outdoor, Sealed/Weatherproof (SK-1323-SDQ)

The Seco-Larm Weatherproof Outdoor Digital Access Keypad is standalone. All keypad features are programmed directly from the keypad and it is able to mount to a single-gang back box. It is designed with backlit keys for easy night time use.12~15 VDC operation.1,010 Users (Output #1: 1,000 users, Output #2: 10 users).2 Form C relays, each rated 1 Amp @ 30VDC.Each relay has programmable output time from 1~99 seconds or toggle.Output #2 can be programmed for use with a doorbell.2 Egress inputs and 1 door sensor input.Two multi-colored status LEDs.All features are programmed directly from the keypad – no need for an external programmer.EEPROM memory protects programmed information in case of power loss.Optical tamper for added security.Circuitry is potted with epoxy for outdoor use.IP65 weatherproof rating, rugged aluminum construction.Technical DetailsMPN: SK-1323-SDQUPC: 676544011088Type: Sealed Housing Weatherproof Outdoor Digital Access KeypadNumber of user codes: Up to 1,010Operating voltage: 12~15 VDCCurrent drain:Stand-by: 40mA@12VDCActive: 70mA@12VDCRelay outputs (2): 1A@30VDC, Form C, NO/COM/NCEgress inputs: 2, N.O. GroundDoor sensor input: N.C. GroundTamper sensor: OpticalOperating temperature: -4°~122° F (-20°~50° C)Keypad LED life: 60,000 hours (over 6.8 years)Dimensions: 6"x1-3/4"x15/16" (152x44x24 mm)

• Backlit keys for easy night time use
• Optical tamper for added security
• IP65 weatherproof rating, rugged aluminum construction
• Two multi-colored status LEDs
• Mounts to a single-gang back box
